Gigabit Reverse PoE Switch for All Networks – Double Uplink

NS-8G-RP-2U

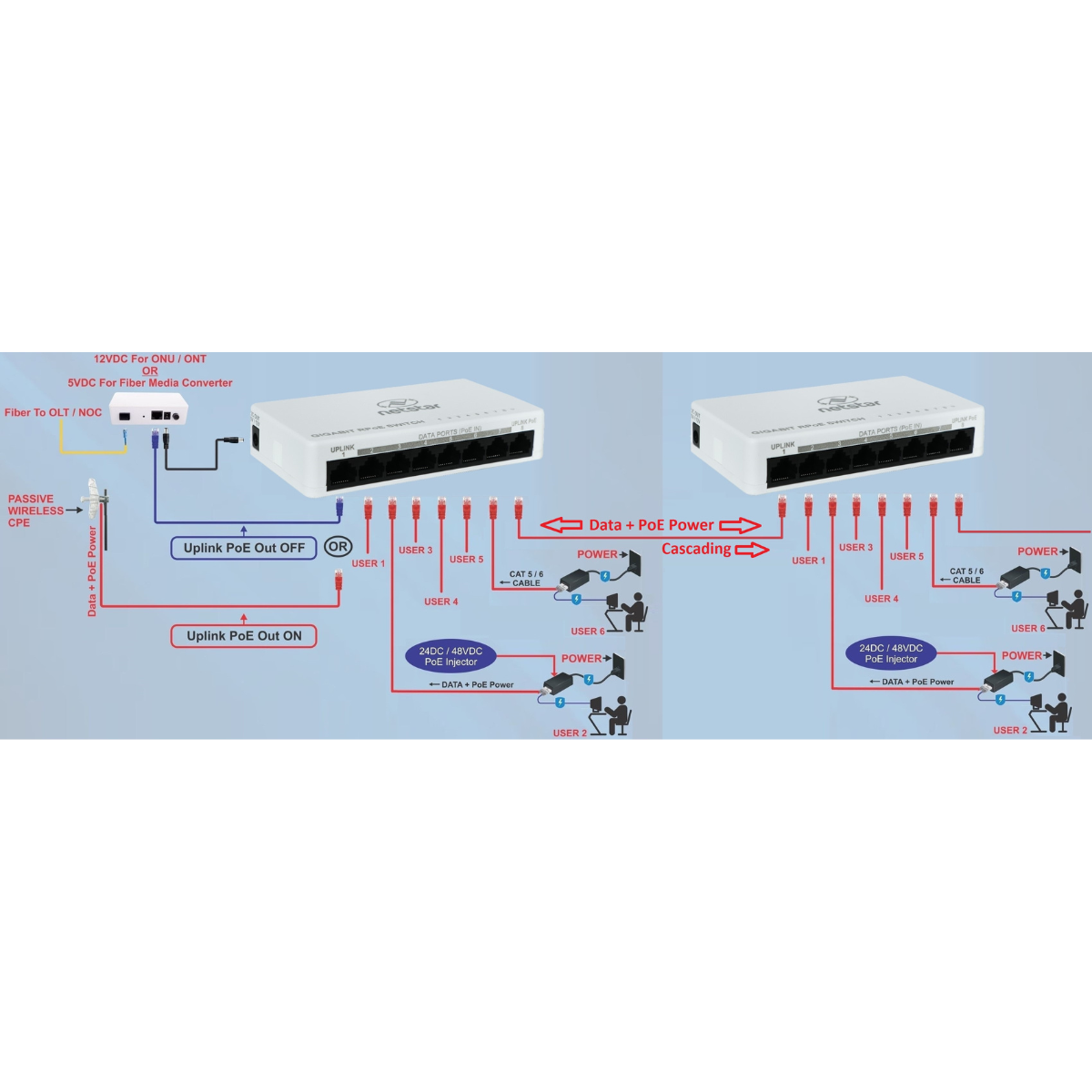

All Purpose Switch – Can work with ONU/ONT, Wireless CPE, Fiber Media Converter

SKU:NS‐8G-RP-2U Category: Reverse PoE Switches

Description
TECHNICAL SPECIFICATIONS
Features

Description

NETSTAR switch has intelligent Power management feature solving a major problem of powering the device for ISPs. This switch can be used for various applications such as with ONU, with media converter or with wireless CPE. ISPs need not worry about arranging power for RPoE Switch and Third Party ONU / ONT / Media Converter / Wireless CPE. This switch can be powered using any standard PoE Injector (18~48VDC). RPoE Switch can draw the necessary power even from a single client. This eliminates the need of UPS / Power Backup at building top. No need to pay to the Building Owner / Any Client for 24 power backup. Overall the RPoE switch saves a lot of money and time for ISP.

Ethernet Connector	RJ45 Jacks - 8 Ports
Downlink	6 x 10/100/1000Mbps(Gigabit) RPoE Ports (Ports 2 to 7) (Data + Power IN)
Uplink	1 x 10/100/1000Mbps(Gigabit) Uplink Port (Port 1) Data Uplink OR Data+PoE Out Uplink by Toggle Slider 1 x Gigabit Data+PoE Out Uplink Port (Port 8)
DC Out Jack	12VDC OR 5VDC by Toggle Push Button
Port Based Isolation	Enable / Disable by Toggle Push Button
Input Voltage	18VDC to 48VDC Through PoE Injector
Protocols	CSMA/CD
Transmission Method	Store and Forward
MAC Address	4K MAC address
LED Indicator	Green : ON - Device On Stable Yellow : ON - Gigabit Link Activate Yellow : Flashing - Gigabit Data Transmission Red : ON - 10/100 Link Activate Red : Flashing - 10/100 Data Transmission
Standards	IEEE Std. 802.3 10BASE-T IEEE Std. 802.3u 100BASE-TX IEEE Std. 802.3x Flow control and Back-pressure. IEEE Std. 802.3az Energy Efficient Ethernet IEEE 802.3ab 1000Base-T
CAT-5/6 Cable Data Lines	All 4 Pair : Pin1, 2, Pin 3, 6, Pin 4, 5, Pin 7, 8
CAT-5/6 Cable Power Lines	+VDC: Pins 4, 5 & -VDC: Pins 7, 8
Operating Temperature	Operation: 0°C ~ 60°C, Store: -20°C ~ 80°C
Operating Humidity	20% to 95% (non-condensing)
Power consumption	3 Watt
Dimensions	130 x 70 x 25 mm
Net Weight	0.15Kg

Intelligent Power Management Feature: Switch can be powered using Reverse Power from customer using any standard PoE Injector (18V~48VDC @ 0.5~1Amp).
Supports Auto-Negotiation: Each of the switch ports automatically detect whether connected network devices are running at 10Mbps / 100Mbps / 1000Mbps and adjusts the speed and mode accordingly ensuring easy and hassle-free operation.
Supports Non-Blocking Wire Speed: The Switch forwards and receives traffic seamlessly with its non-blocking wire-speed.
Port Based Isolation: Data of the Uplink Port can be transfer to any of the Downlink ports but the Individual Downlink ports can't communicate with each other. Port Isolation Can be enabled/Disabled using Push Button.
Surge Protection: Surge protection provided each port to protect against high voltage surge on data ports or Uplink port.
Cascading: Switches Can be Cascaded for more User.
