48VDC @ 0.5A 10/100Mbps Passive PoE Injector

NM‐048

SKU:NM‐048 Category:
  • Description
  • TECHNICAL SPECIFICATIONS

Description

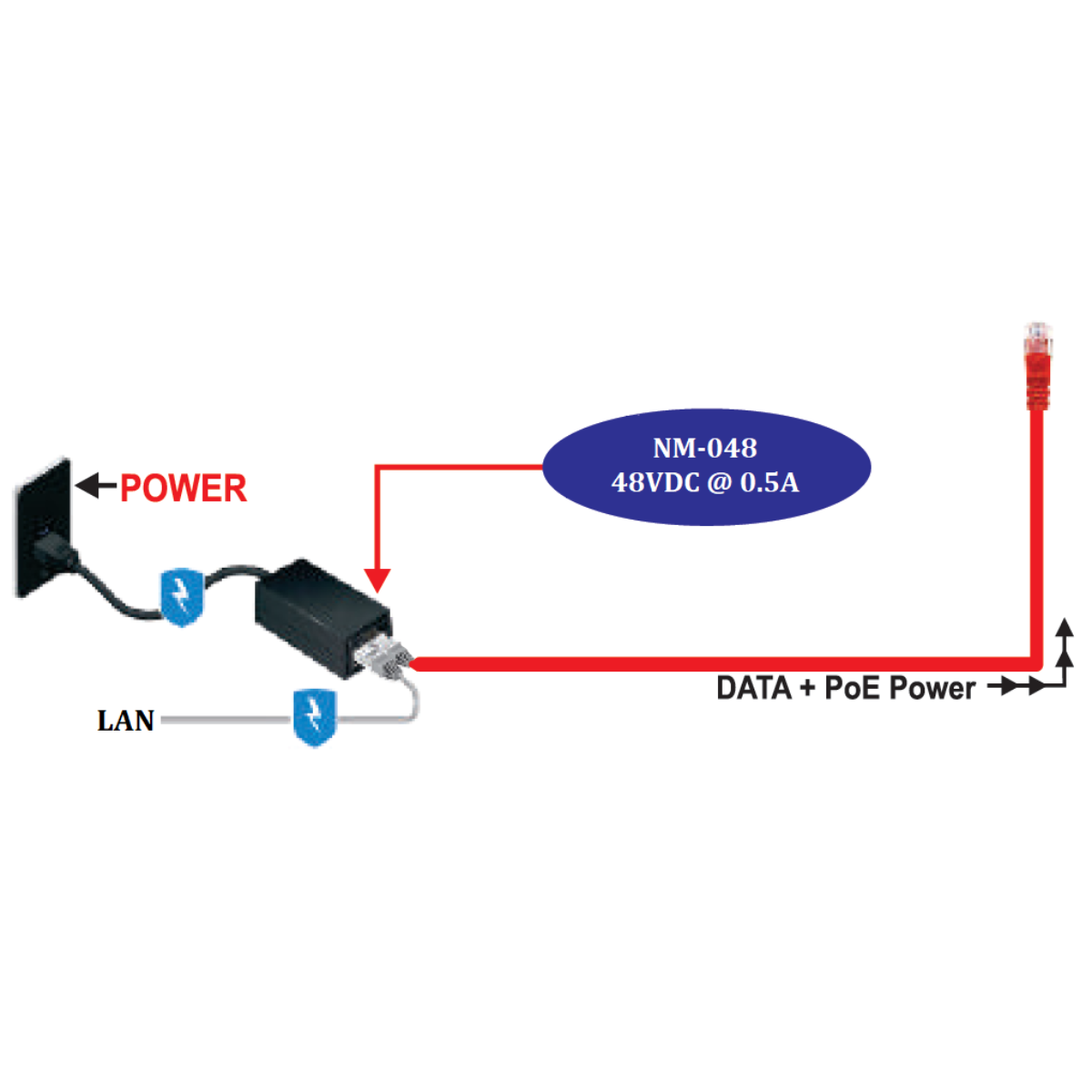

NETSTAR Passive PoE Injector is used to power variety of NETSTAR Reverse PoE Switches and other Passive Wireless CPE / PoE enabled devices (48VDC, 0.5A). NETSTAR PoE Injectors provide variety of features like Surge Protection, Overload & Short Circuit Protection

Ethernet Connector 2 x 10/100Mbps Metallic RJ45 Ports
Input Voltage 100-240VAC @ 50/60Hz
Output Voltage 48VDC @ 0.5A (24Watt)
Network Cable 4-pair UTP Cat 5 / Cat 6 cable
LED Power : On/Off for PoE Injector
Power Cord By default : Indian Type 3 Pin Power Cord
*Also available with all type of Power cords
Ethernet Cable Data Line Pin 1,2 & Pin 3,6
Ethernet Cable Power Line +VDC : Pin 4, 5 & -VDC : Pin 7, 8
Operating Temperature Operation: 0°C ~ 60°C
Storage Environment -20°C ~ 80°C
Operating Humidity 20% to 95% (non-condensing)
Dimensions 50 x 110 x 35 mm
Weight of Switch 0.23Kg
